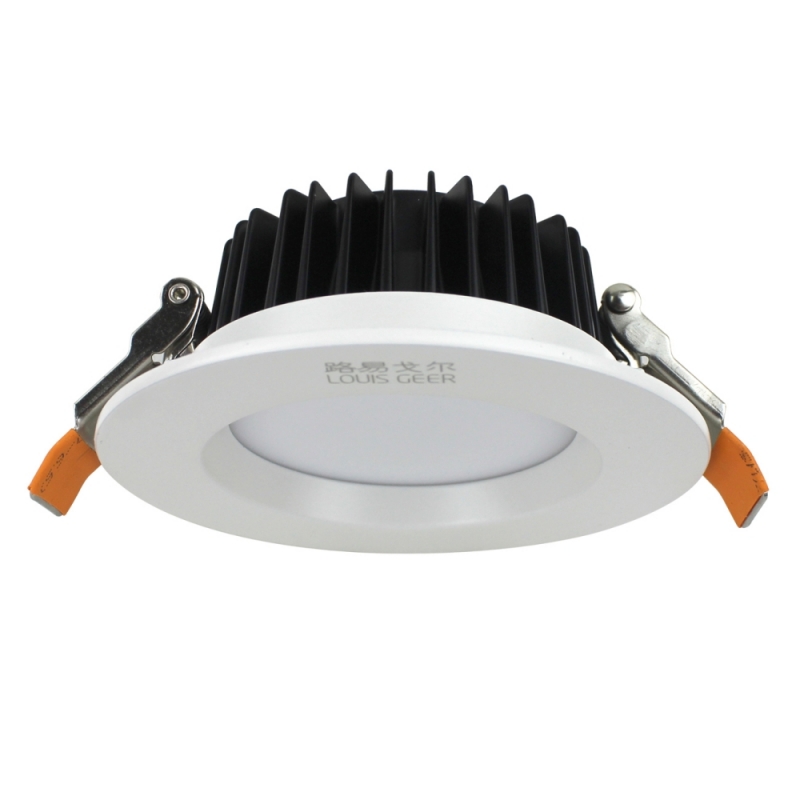

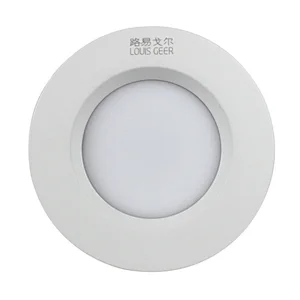

energy saving lamp NF-TD80F-10

Model NO.
The highly efficient 10W 15W 20W 30W 40W led energy saving lamp is unique designed with SMD2835 LED chip.
This led lamp with short heatsink designed for any ceiling led panel light installations.
Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.
The led panel light and led lamp up to 70% energy saving compared to standard CFL energy saving lamp.
Optional Dimming: DALI, 0-10V, Triac

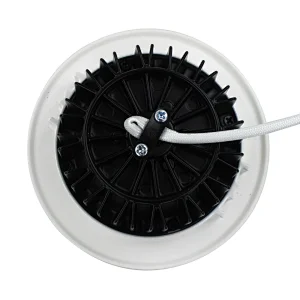

Good cooling system with superior aluminum heat sink.
Spring and blade bracket optional
Durability: improved life expectancy due to reduced drive current with lumen maintenance (L70) 64,000 hours.
Reducing costs: lowering the cost of ownership with current raising energy prices.
Packaging: with reduced packaging and no plastic, our led lamp uses recycled paper stuffing to protect the fitting along with sustainable bulk packaging made from recycled paper to reduce wastage.
Smart design: going green doesn’t mean sacrificing style with its compact size, led panel light is considered and minimal.
Rated power:10W 15W 20W 30W 40W
Input voltage:AC200-240V 50/60Hz
Light source brand:SMD2835 LED
Color temperature:3000K 4000K 6000K
Color rendering index:>80Ra
Projection angle: Non-Adjustable
Beam angle: 120 °
Life span:>50000H
Material: Aluminum

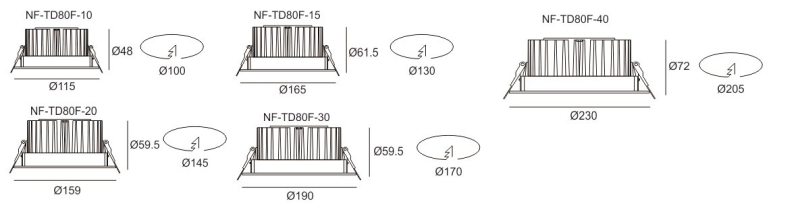

Unit size:Ф115*H48mm,  Ф165*H62mm, Ф190*H60mm, Ф230*H72mm
Cut-out size:Ф100mm, Ф145mm, Ф170mm, Ф205mm
Color: Black, White
Control: On/Off
IP Rating: IP20
Including LED Driver
Installation: Recessed mounted

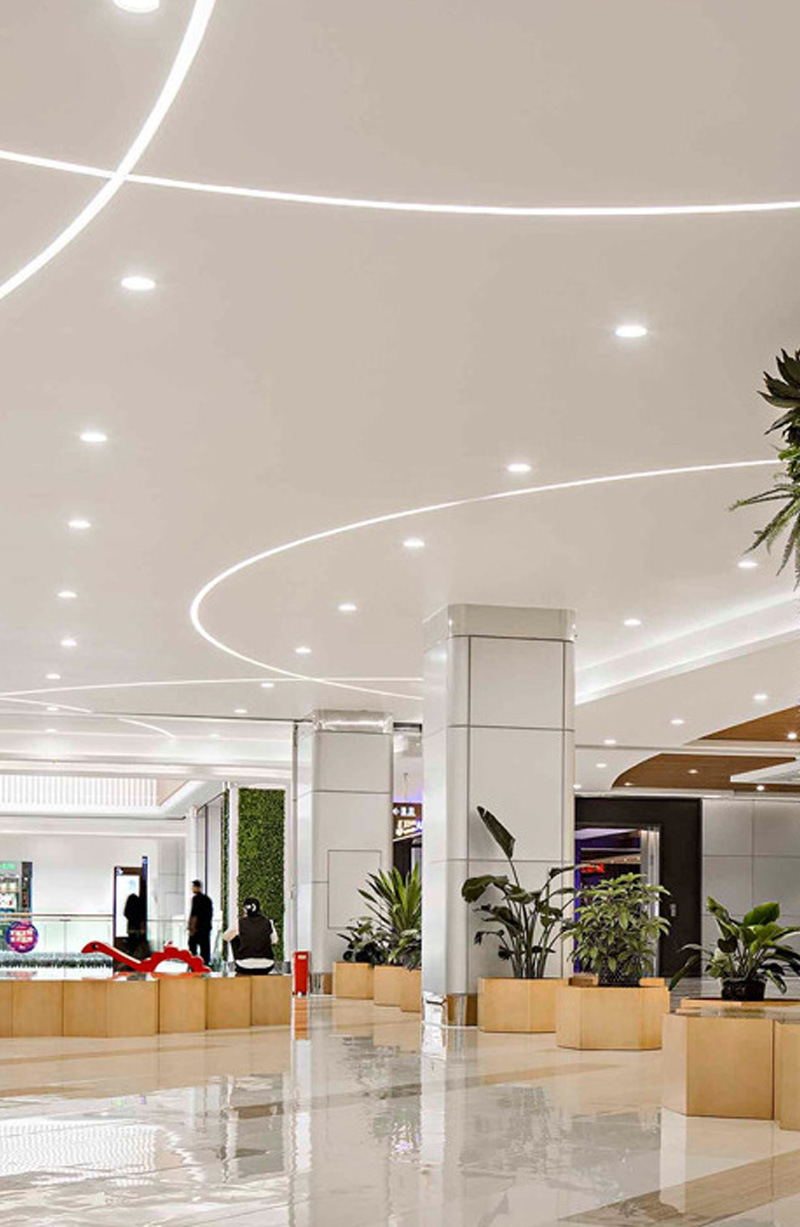

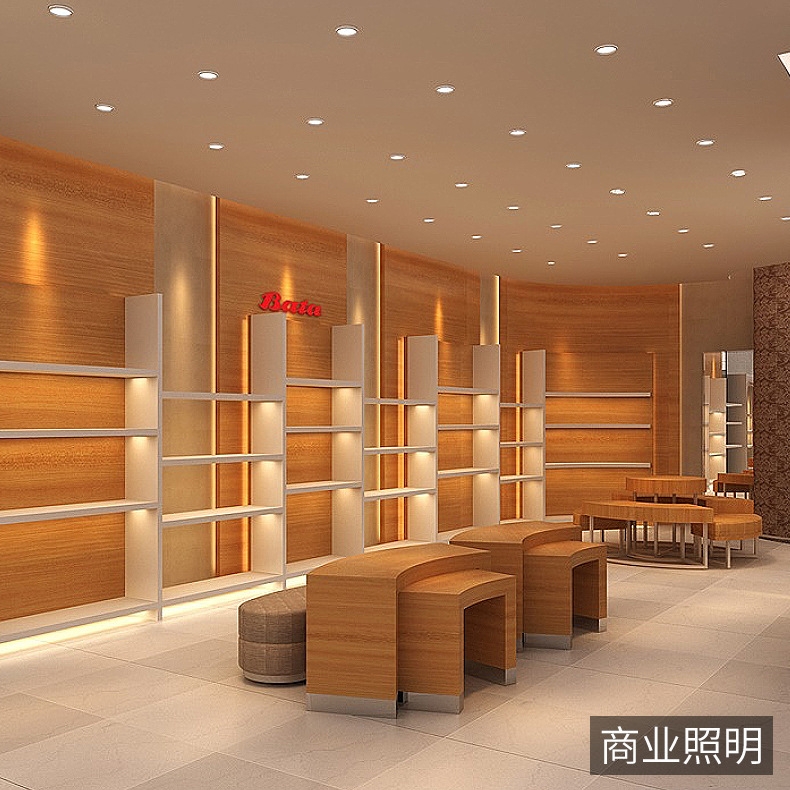

The led energy saving lamp and led lamp is suitable for hotel, store, apartment, washroom, aisle etc.
