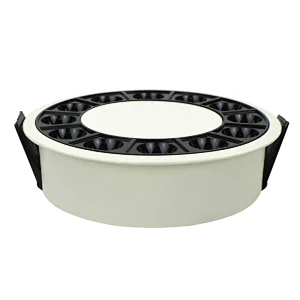

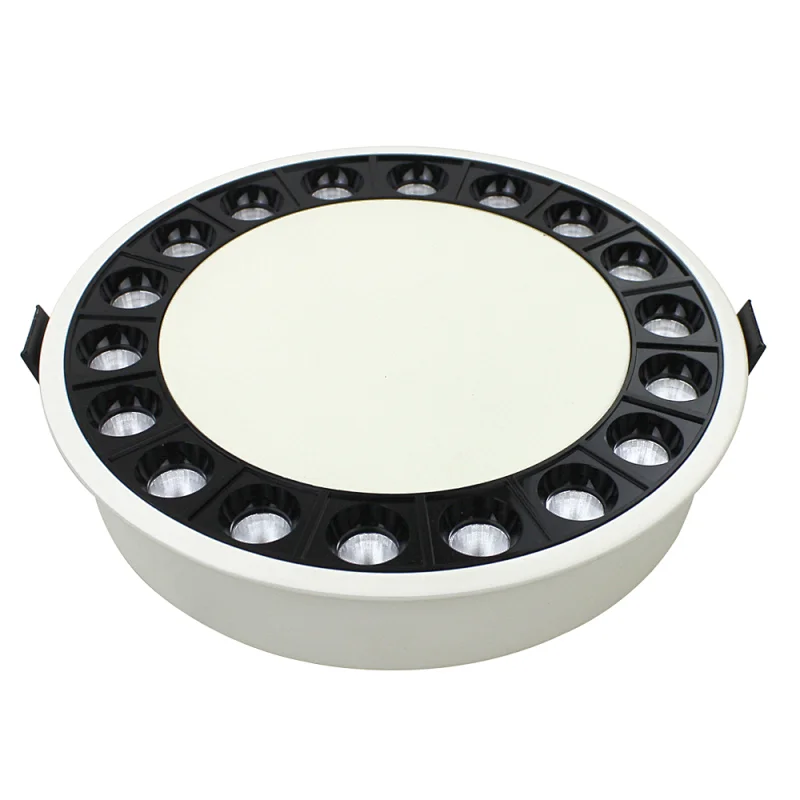

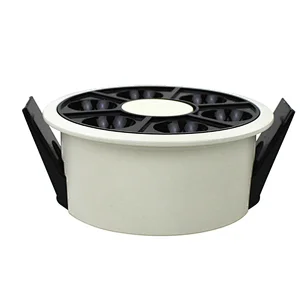

led down light NF-TD85C-30

Model NO.
This 8W 15W 20W 30W led down light develops the concept of integration inarchitecture to improve people's well-being throughthe smart activation of safety, entertainmentcomfort and sustainability services.

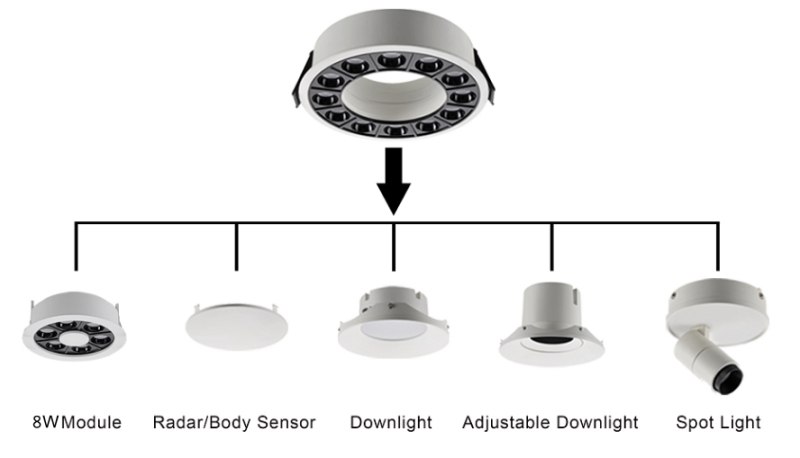

The ceiling light integrates to keep things simple and ensureceilings are clean and harmonious. Absolutefunctional and aesthetic integration. All in one led light panel.
LED light panel satisfies numerous space requirementscomplying with safety standards and meetingchanging trends in user behaviour.

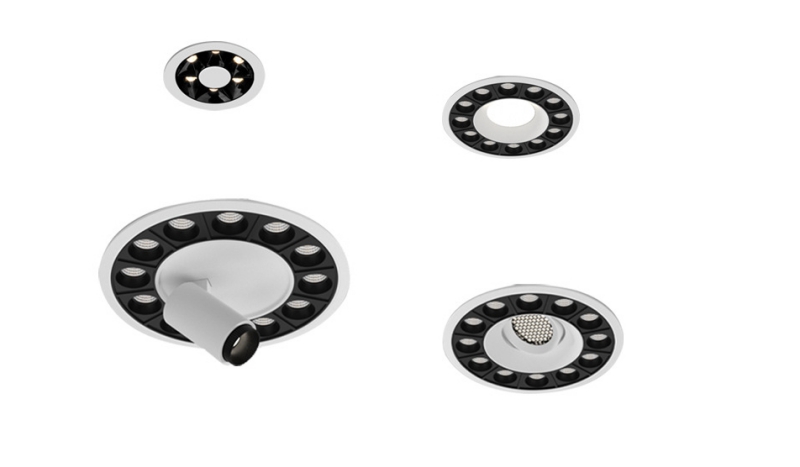

Double Adjustability. Integrated recessed LED down light with double adjustability (30° on the horizontal plane, 355° on the vertical axis).
Variable light. Diffused light ensuring high visual comfort for total control of luminance. Monochromatic, tunable white and RGB versions.
Vertical light. High precision optics to illuminate walls from the ceiling to the floor.
The ceiling light has a number of different, standard and order-only finishes. To ensure the device blends in completely with the architecture, the central cover is customisable and can be painted any colour to match the ceiling.
This led down light with short heatsink designed for any ceiling installations.
Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.
The led light panel up to 70% energy saving compared to standard CFL energy saving lamp.
Optional Dimming: DALI, 0-10V, Triac
Good cooling system with superior aluminum heat sink.
Spring and blade bracket optional
Durability: improved life expectancy due to reduced drive current with lumen maintenance (L70) 64,000 hours.
Reducing costs: lowering the cost of ownership with current raising energy prices.
Packaging: with reduced packaging and no plastic, our led down light uses recycled paper stuffing to protect the fitting along with sustainable bulk packaging made from recycled paper to reduce wastage.
Smart design: going green doesn't mean sacrificing style with its compact size, led light panel is considered and minimal.
Rated power:8W 15W 20W 30W
Input voltage:AC220-240V 50/60Hz
Light source brand:Osram/Cree LED
Color temperature:3000K 4000K 6000K
Color rendering index:>80Ra

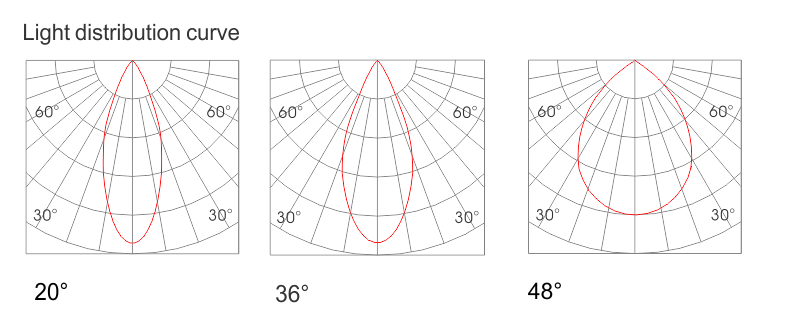

Beam angle: 20° 34° 48°
Life span:>50000H
Material: Aluminum

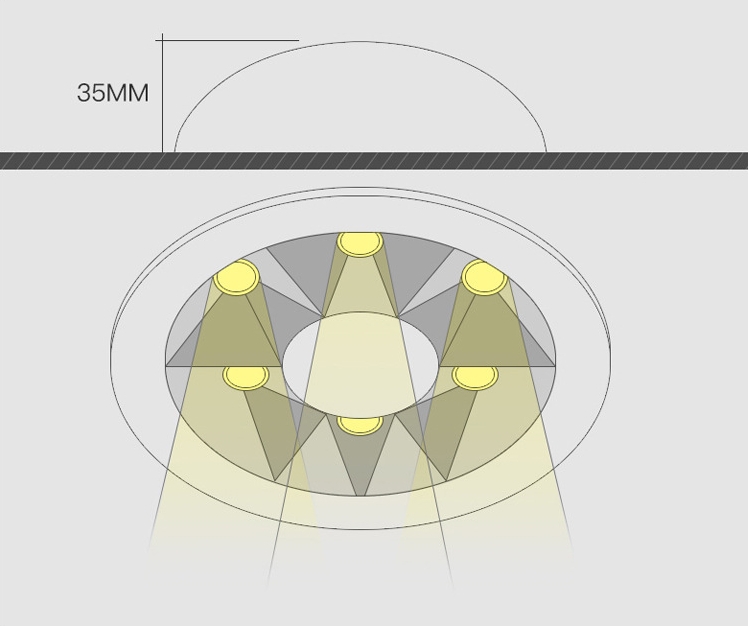

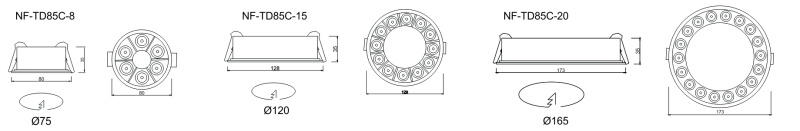

Unit size:Φ80*H35mm,  Φ128*H35mm, Φ173*H35mm, Φ218*H35mm
Cut-out size:Φ75mm, Φ120mm, Φ165mm, Φ205mm
Color: Black, White
Control: On/Off
IP Rating: IP20
Including LED Driver
Installation: Recessed mounted

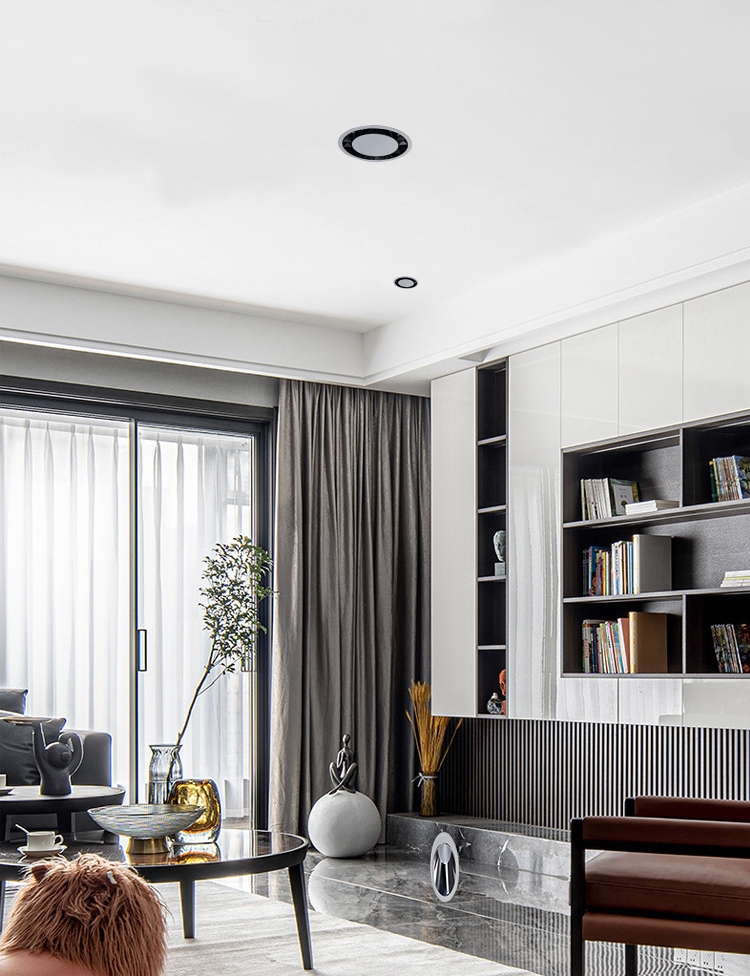

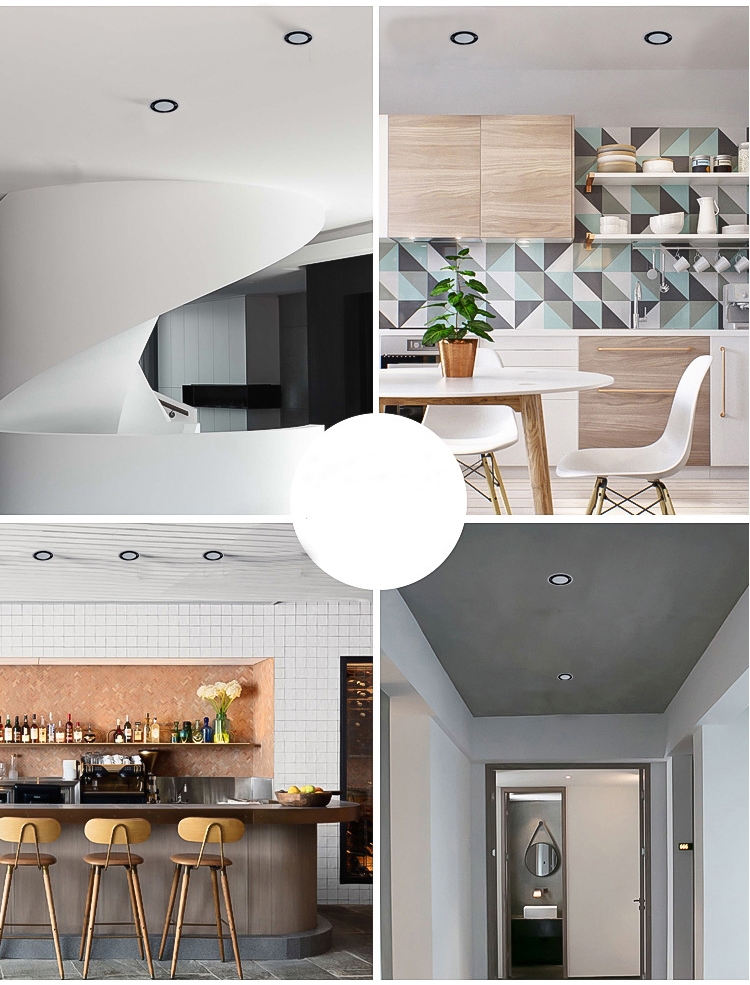

The ceiling light and led down light is suitable for hotel, store, apartment, washroom, aisle etc.
