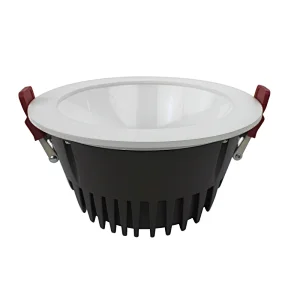

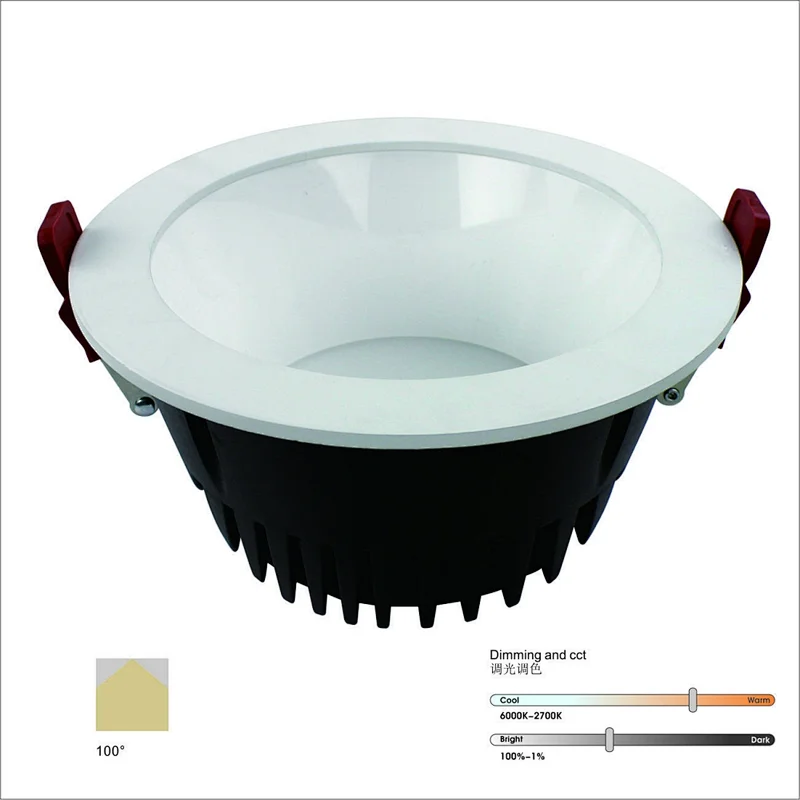

led interior lighting NF-TD88F-7

The highly efficient 7W 10W 15W 20W 30W 40W led interior lighting is unique designed with SMD2835 LED chip.



This led bulb light with short heatsink designed for any led ceiling installations.



Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.



The led bulb light and led interior lighting up to 70% energy saving compared to standard CFL energy saving lamp.



Optional Dimming: DALI, 0-10V, Triac

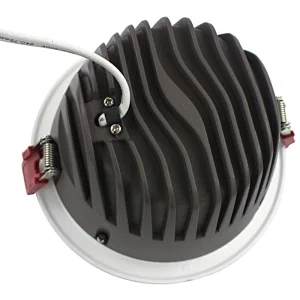

Good cooling system with superior aluminum heat sink.



Spring and blade bracket optional



Durability: improved life expectancy due to reduced drive current with lumen maintenance (L70) 64,000 hours.



Reducing costs: lowering the cost of ownership with current raising energy prices.



Packaging: with reduced packaging and no plastic, our led bulb light uses recycled paper stuffing to protect the fitting along with sustainable bulk packaging made from recycled paper to reduce wastage.



Smart design: going green doesn't mean sacrificing style with its compact size, led interior lighting is considered and minimal.



Rated power：7W 10W 15W 20W 30W 40W
Input voltage：AC200-240V 50/60Hz
Light source brand：SMD2835 LED
Lumen：600LM-3500LM
Color temperature：3000K 4000K 6000K
Color rendering index：＞80Ra
Projection angle: Non-Adjustable

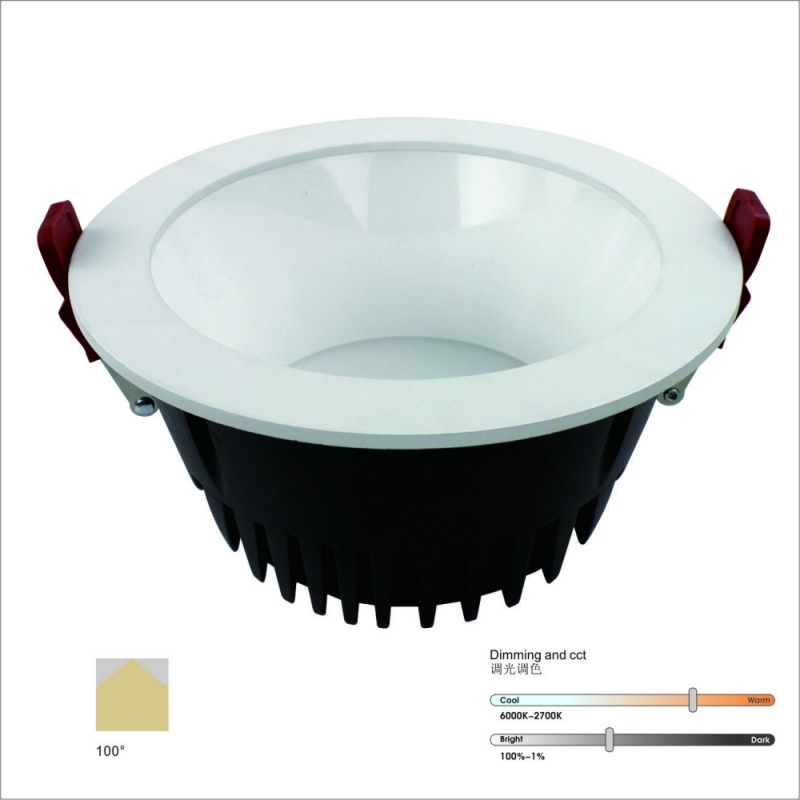

Beam angle： 100 °
Life span：＞50000H
Material: Aluminum

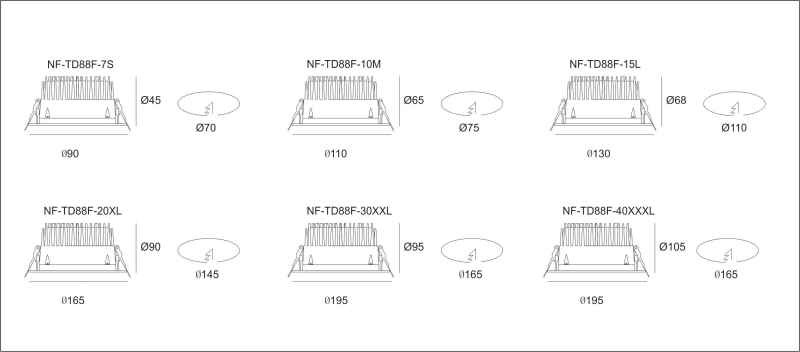

Unit size：Ф90*H45mm,  Ф110*H65mm, Ф130*H68mm, Ф165*H90mm, Ф195*H95mm,Ф195*H105mm
Cut-out size：Ф70mm, Ф75mm, Ф110mm, Ф145mm, Ф165mm
Color: Black, White
Control: On/Off
IP Rating: IP20
Including LED Driver

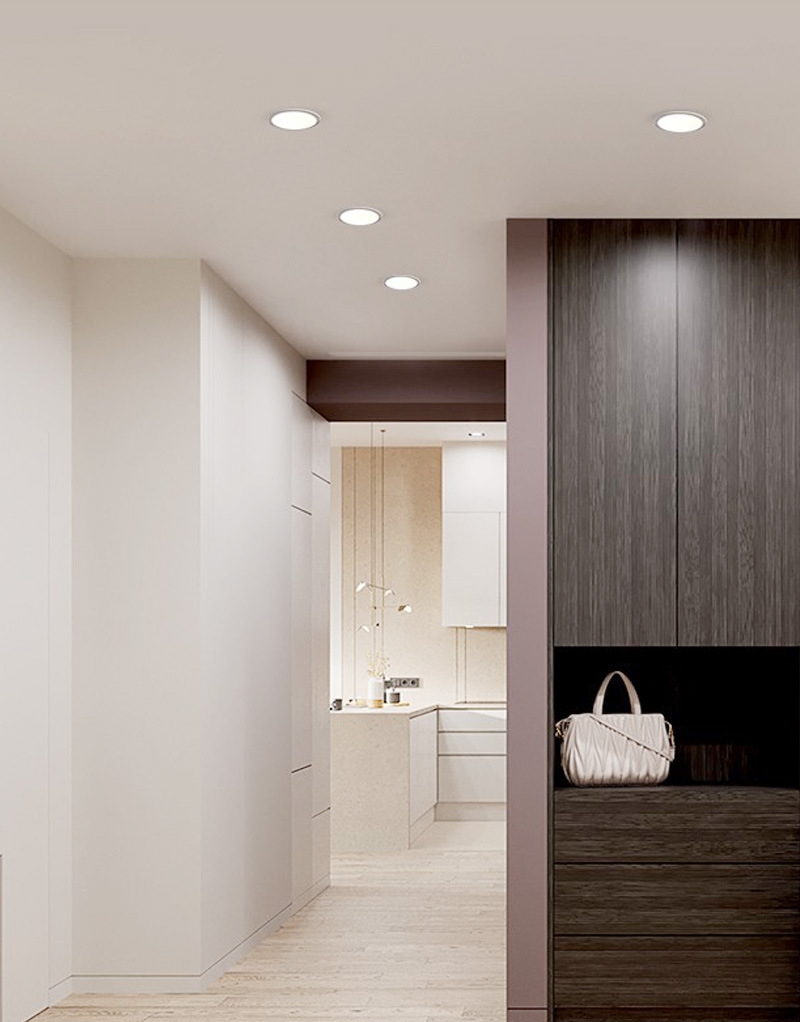

Installation: Recessed mounted
