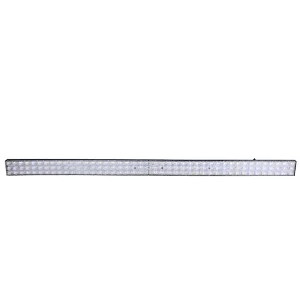

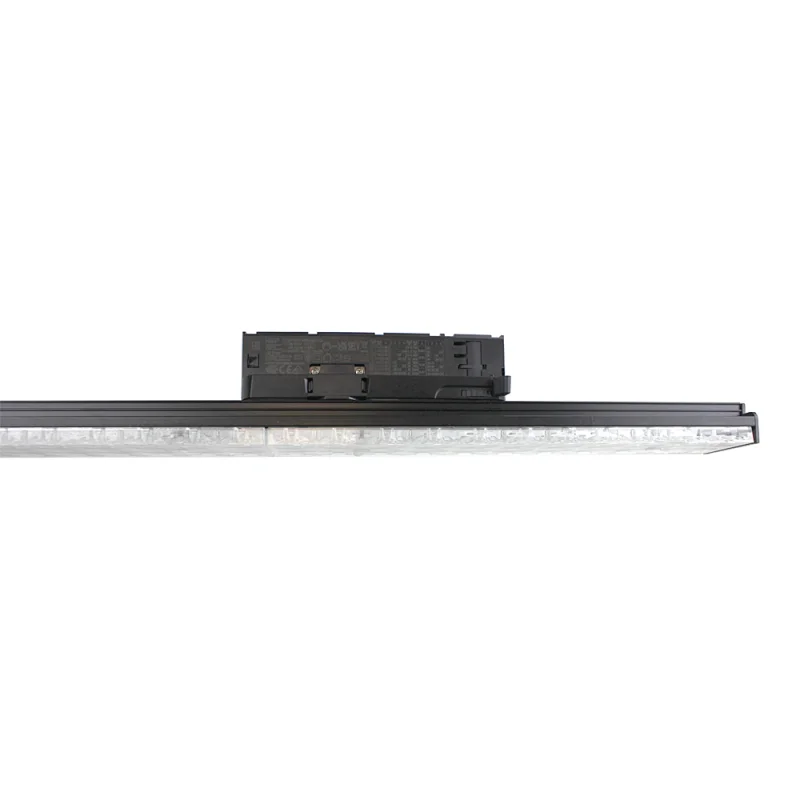

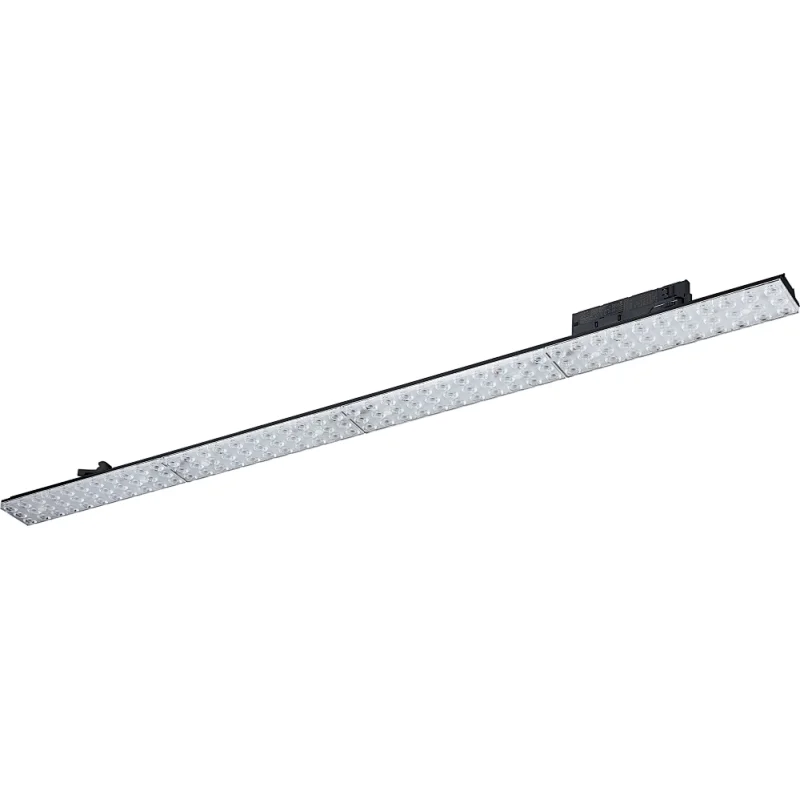

Leading the way in retail lighting, slim track-mounted LED linear light supermarket lighting solution.

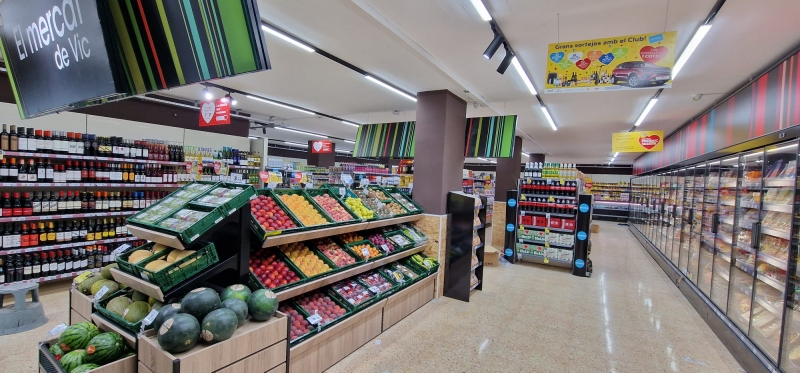

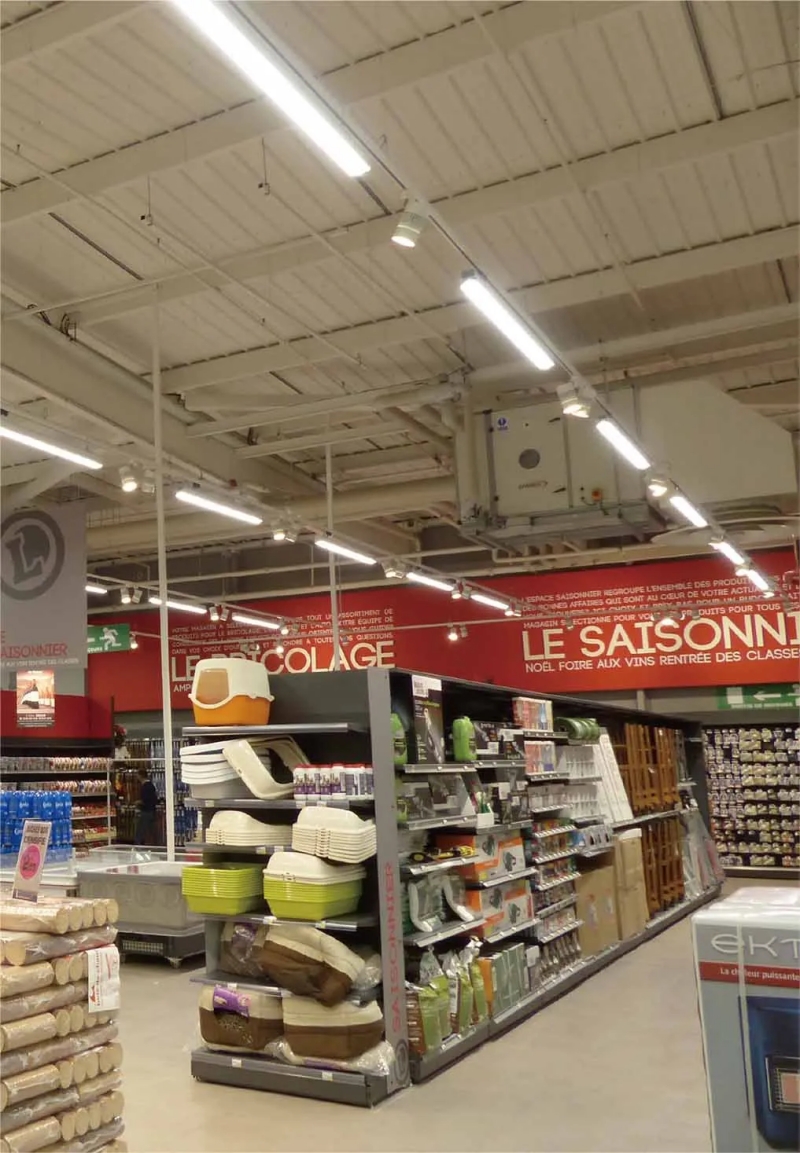

The LED linear light is specially researched for supermarkets to replace the traditional led light bar tubes, integrated with Track spot led lights through the same tracks, illuminate the walkway between the shelves for general lighting, and the LED linear light illuminate the goods on the shelves.
LED light bar Product Description:
Model No.: NF-DT-210B-38
Power: 38W
Light Source: SMD2835 LED
Input voltage: AC220-240V 50/60Hz
PF: >0.95
UGR: ≤19
CCT: 3000K, 4000K, 6000K
Luminous efficiency：＞130LM/W
Housing Color: Black & White
CRI: Ra>80,Ra>90

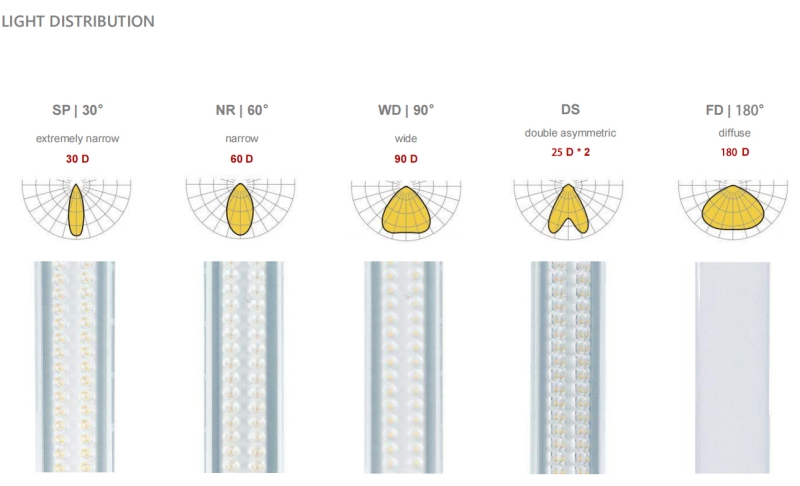

Beam Angle: 30° , 60° , 90° , double asymmetric 25° * 2
Track Type: 2 or 3 wires 1 circuit/4 wires 3 circuits/ 6 wires 3 circuits DALI dimmable
Operating Temperature: -40℃ - 50℃
Rated Lifetime: >50000hs
Certification: CE, RoHS
Warranty: 5 Years

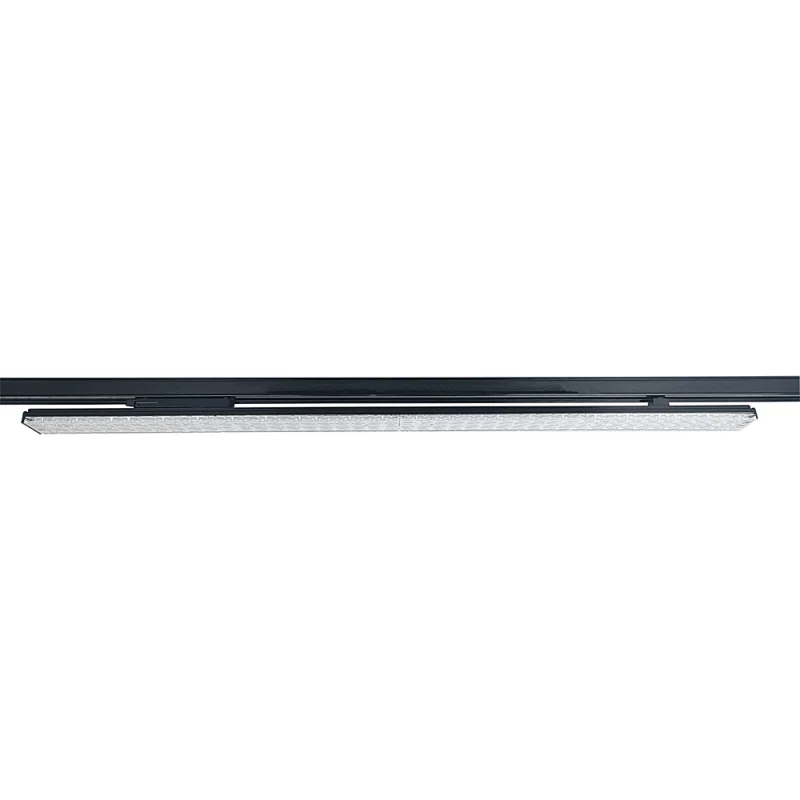

Installation: Track Mounted/Recessed Mounted/Suspended Mounted

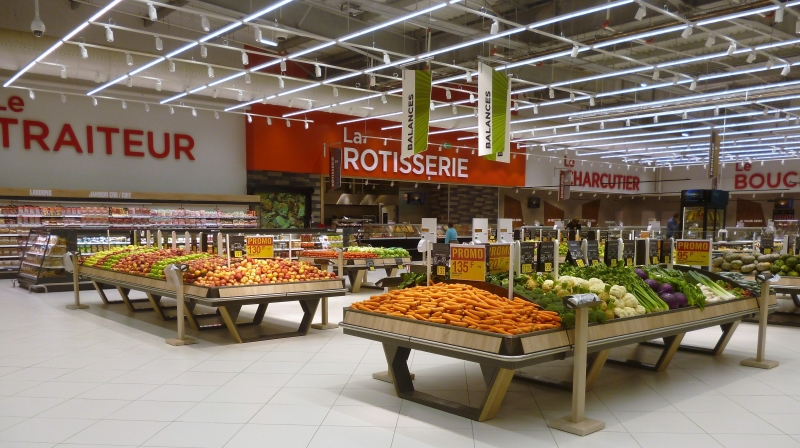

LED Lights Applications: Supermarkets,Clothing stores,Showroom,Warehouse,Libraries,Aisles,Shelves lighting
FAQs for led light bar
Can the size be customized?
Depending on the customer's requirement, We can expand the LED linear light in length based on the specified lens. Instead, we can't change the appearance and size of led light bar. If possible the professional engineering team will be looking for practical solutions to the problems.
Whether can I choose a certain CCT(color temperature) or CRI(Color Rendering Index)?
Our R&D team would match the led source you mentioned upon different usage scenarios or projects.
Our R&D team would match the led source you mentioned upon different usage scenarios or projects.
Can I choose the specified driver?
We offer drivers with different brands and functions. The common of which are KGP, TRIDONIC, PHILIPS, OSRAM, LIFUD, DONE and BOKE. And non-dimmable, 0-10V and DALI dimming for option.
We offer drivers with different brands and functions. The common of which are KGP, TRIDONIC, PHILIPS, OSRAM, LIFUD, DONE and BOKE. And non-dimmable, 0-10V and DALI dimming for option.
Could you provide DIALUX if needed?
Yes. The expert engineer can offer quick spatial simulation, just tell us the size of installation space and brightness demand.
Yes. The expert engineer can offer quick spatial simulation, just tell us the size of installation space and brightness demand.
Can the customer's LOGO be printed on the package?
Also just tell us with detailed information, like logo and product model, and then we can supply the brand label design, including not only labels but also instruction books and special packing boxes.
Also just tell us with detailed information, like logo and product model, and then we can supply the brand label design, including not only labels but also instruction books and special packing boxes.
Can I choose the beam angle?
For NF-DT-210B led lights Series, there are four beam angel lens, like 30 degree, 60 degree, 90 degree and double asymmetric 25 degree.
For NF-DT-210B led lights Series, there are four beam angel lens, like 30 degree, 60 degree, 90 degree and double asymmetric 25 degree.
