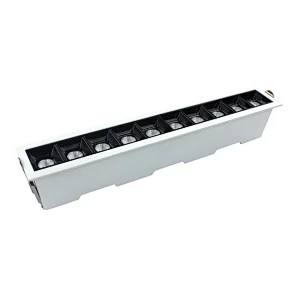

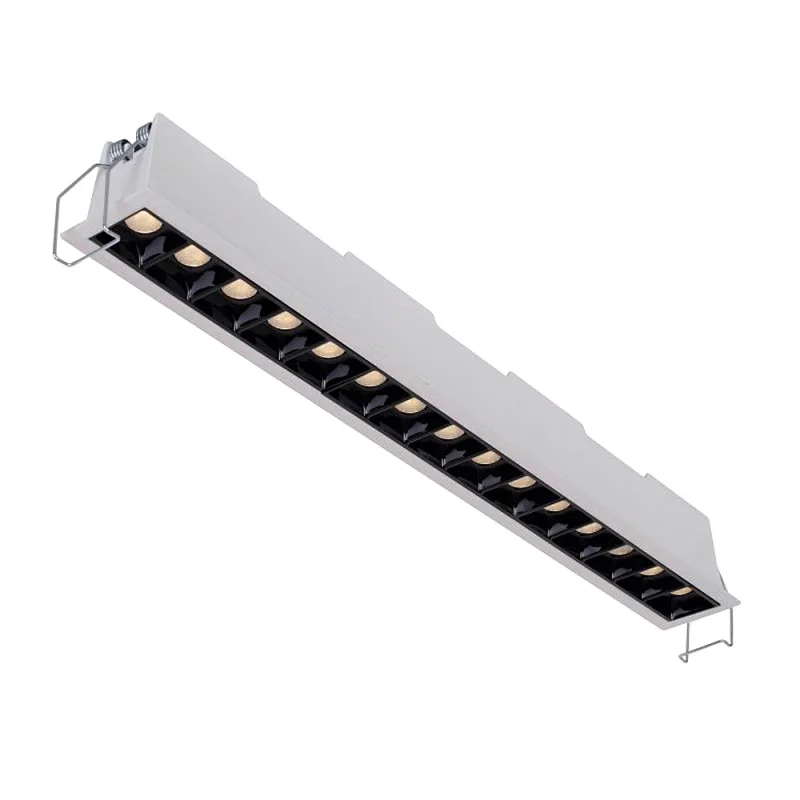

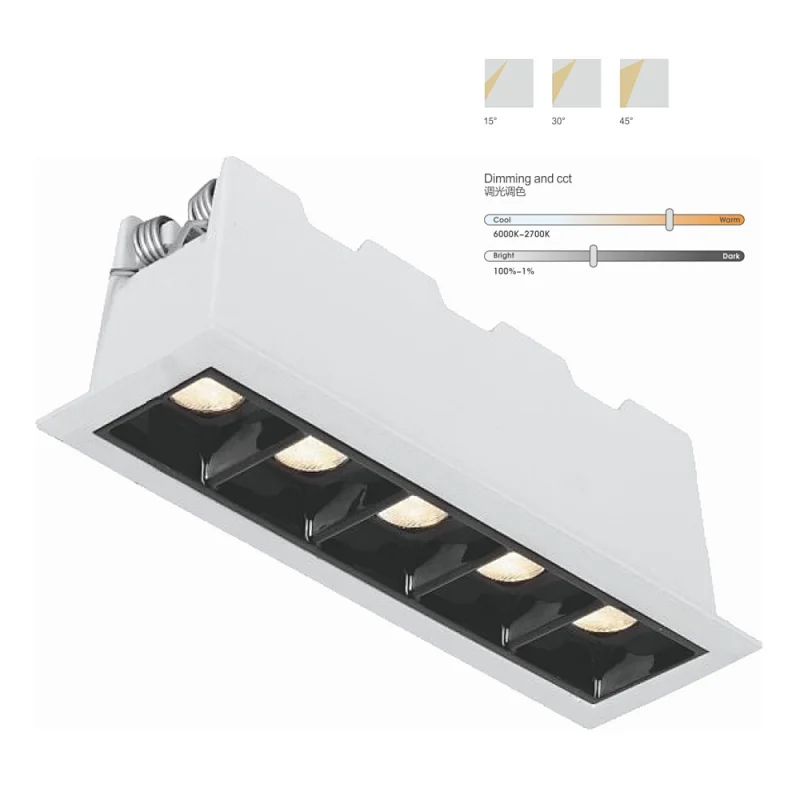

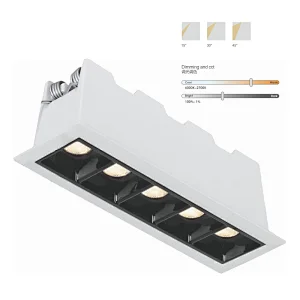

Linear spotlight features a rectangular form, different from traditional round LED recessed downlight and spot light systems.
Designed to eliminate glare with black internal reflector, the LED linear spotlight feature a die-cast aluminium construction and are super lightweight.
Supplied with an LED driver as well as flex-and-plug, the installation could not be easier.
To get further control of the brightness, it can be dimmed with 0-10V, trailing edge or DALI.

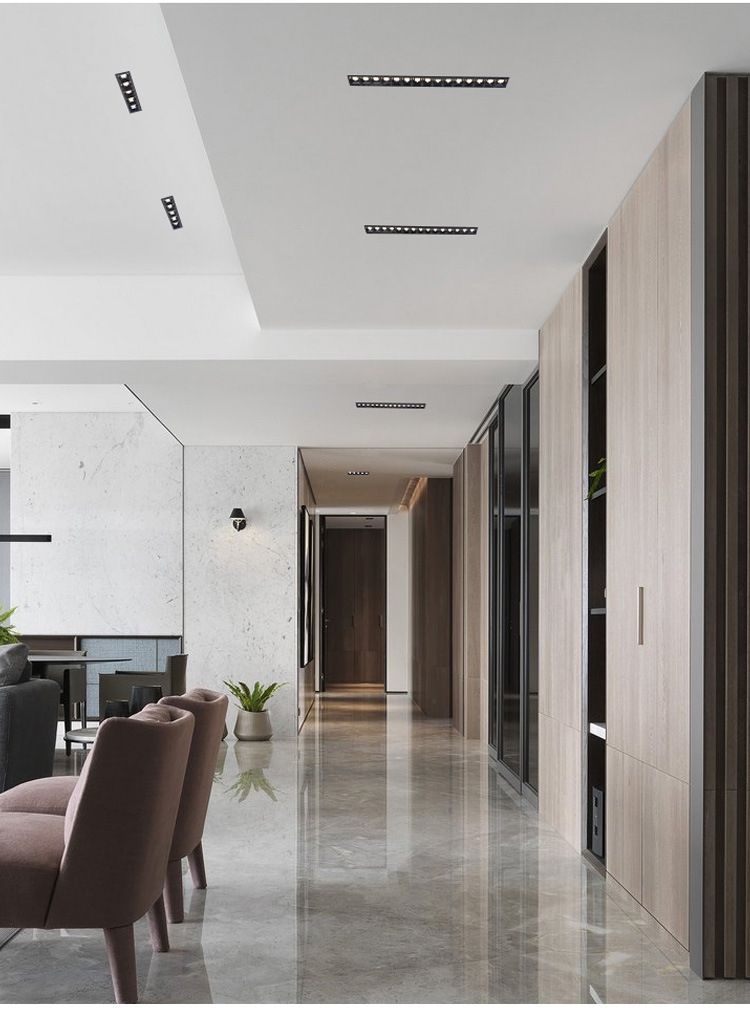

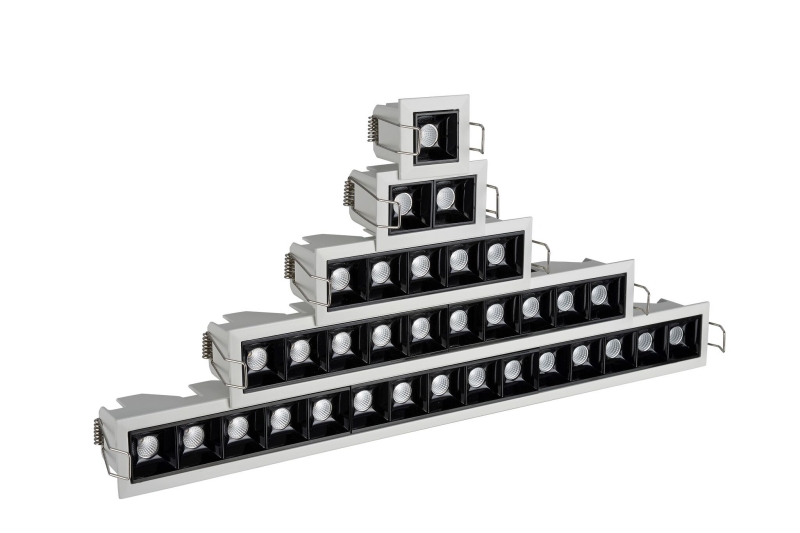

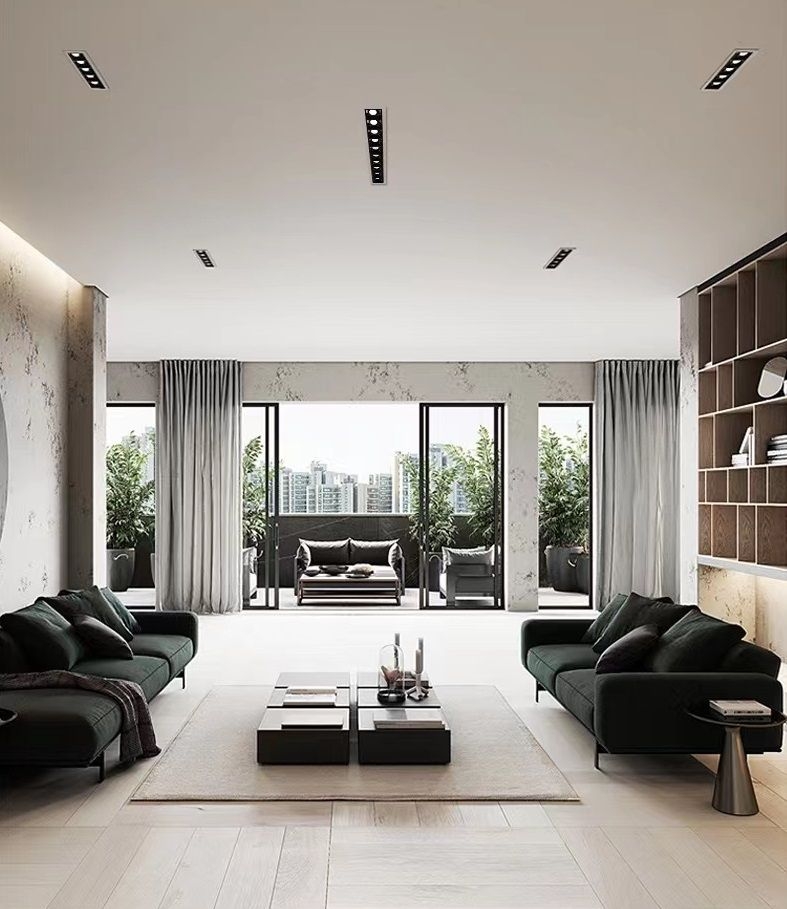

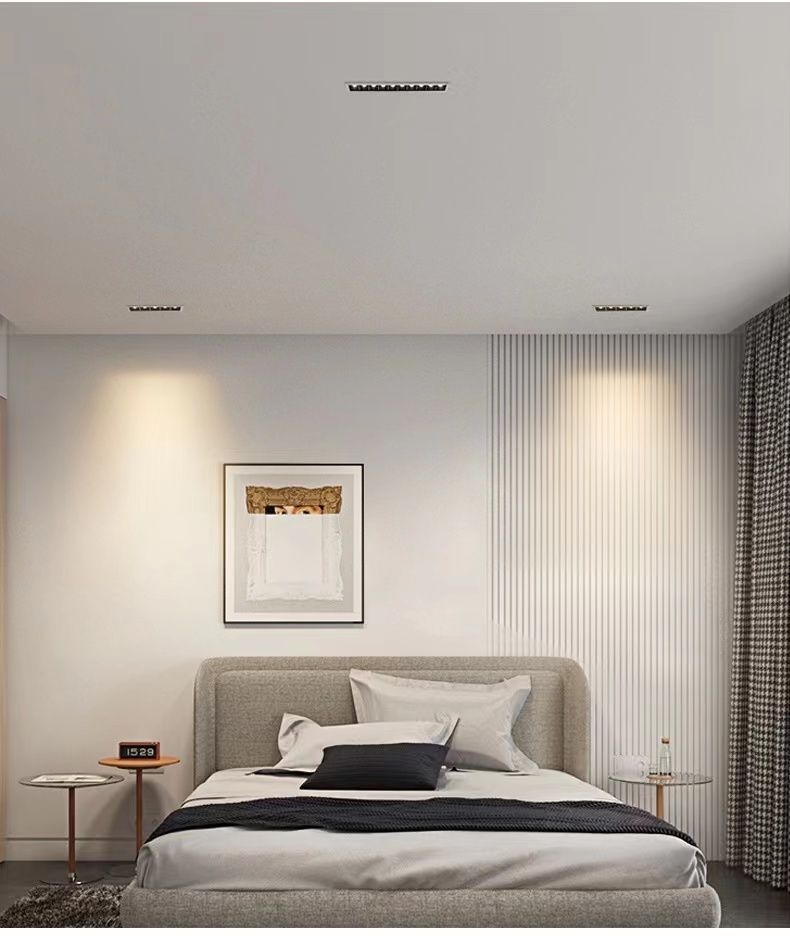

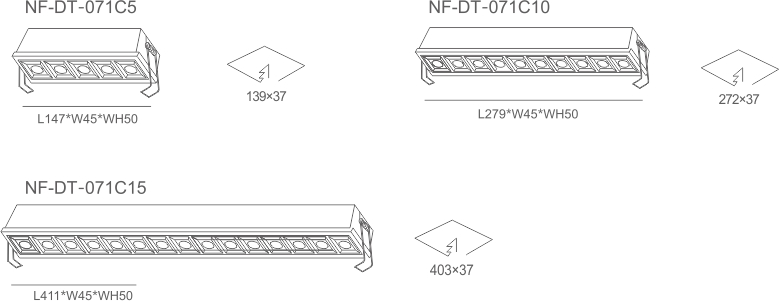

Mix and match the different sizes and create a truly unique design. This LED recessed downlight and spot light series is recommended for both high-end residential projects as well as commercial applications.
Supplied with an LED driver as well as flex-and-plug, the installation could not be easier.
To get further control of the brightness, it can be dimmed with 0-10V, trailing edge or DALI.
Mix and match the different sizes and create a truly unique design. This LED recessed downlight and spot light series is recommended for both high-end residential projects as well as commercial applications.
LED linear spotlight product parameter:
Ingress protection: IP20
Operating temperature range: from -20° to +35°
Lifetime: 50000h
Nominal volatge: 230-240V AC
Nominal frequency: 50-60Hz
Protection class: II
Contains light source: yes
Dimming: DALI, Triac, on-off
Optical system: reflector

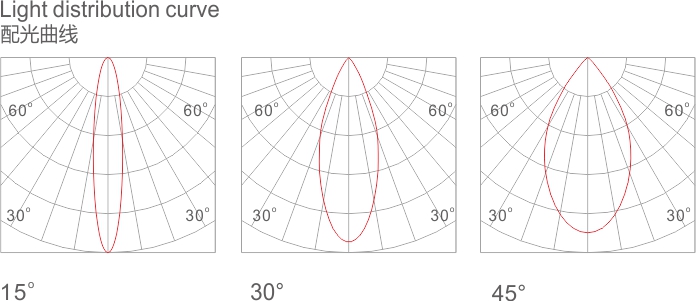

Lenses available: 15°, 30°, 45°
Light source: LED
Colour Rendering Index: CRI≥80 (on request: CRI≥90)
Tolerance of luminous flux: SDCM<3
Operating temperature range: from -20° to +35°
Lifetime: 50000h
Nominal volatge: 230-240V AC
Nominal frequency: 50-60Hz
Protection class: II
Contains light source: yes
Dimming: DALI, Triac, on-off
Optical system: reflector
Lenses available: 15°, 30°, 45°
Light source: LED
Colour Rendering Index: CRI≥80 (on request: CRI≥90)
Tolerance of luminous flux: SDCM<3
This LED linear spotlight belongs to product groups Interior lighting - Recessed downlight - Linear spot light - LED lights - Retail - Office - Contract.
This LED recessed downlight and spot light is part of collection RECESSED.
