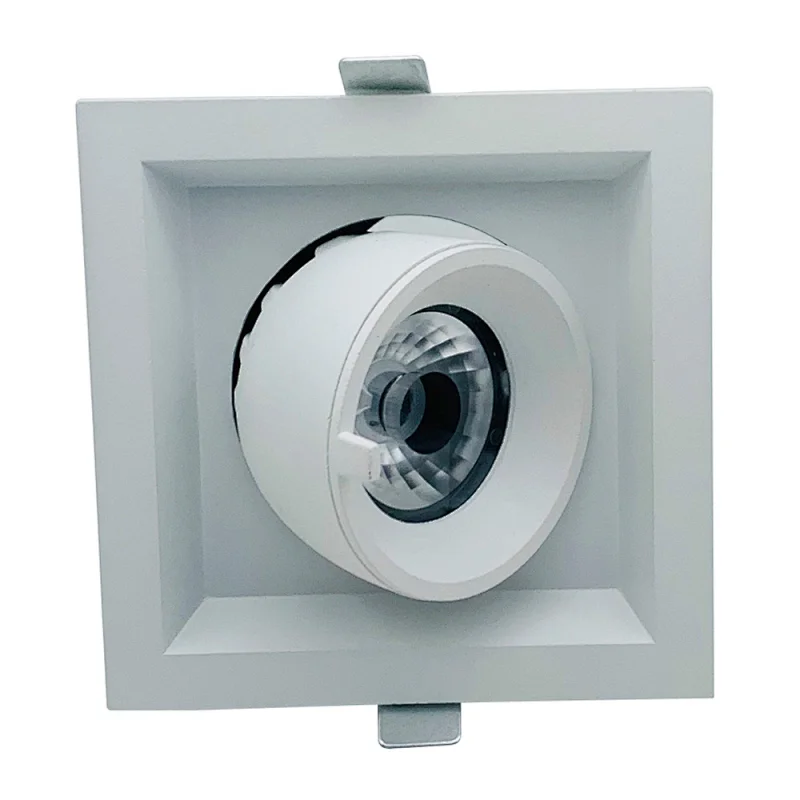

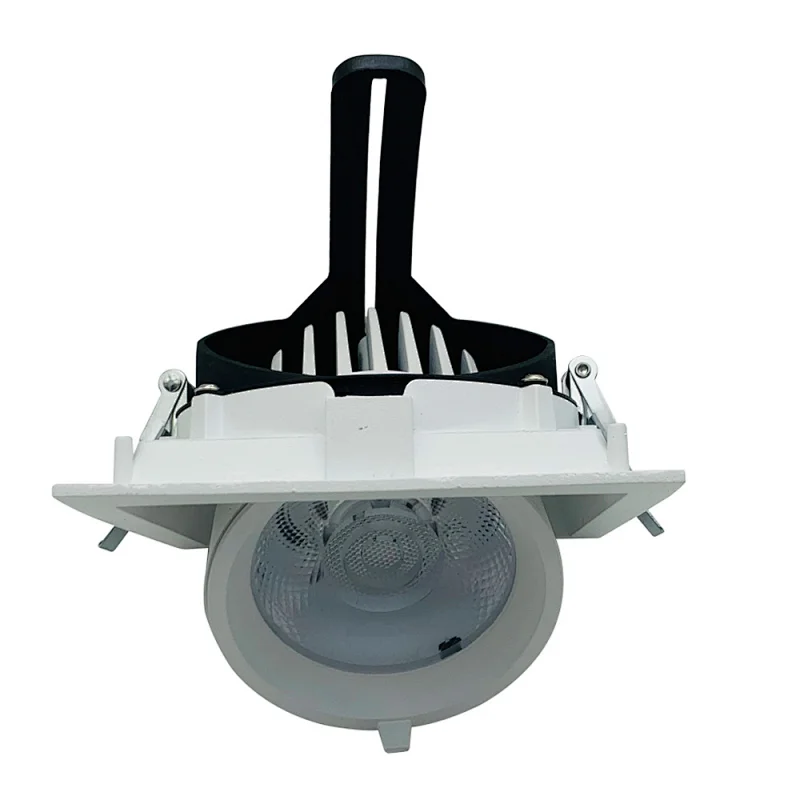

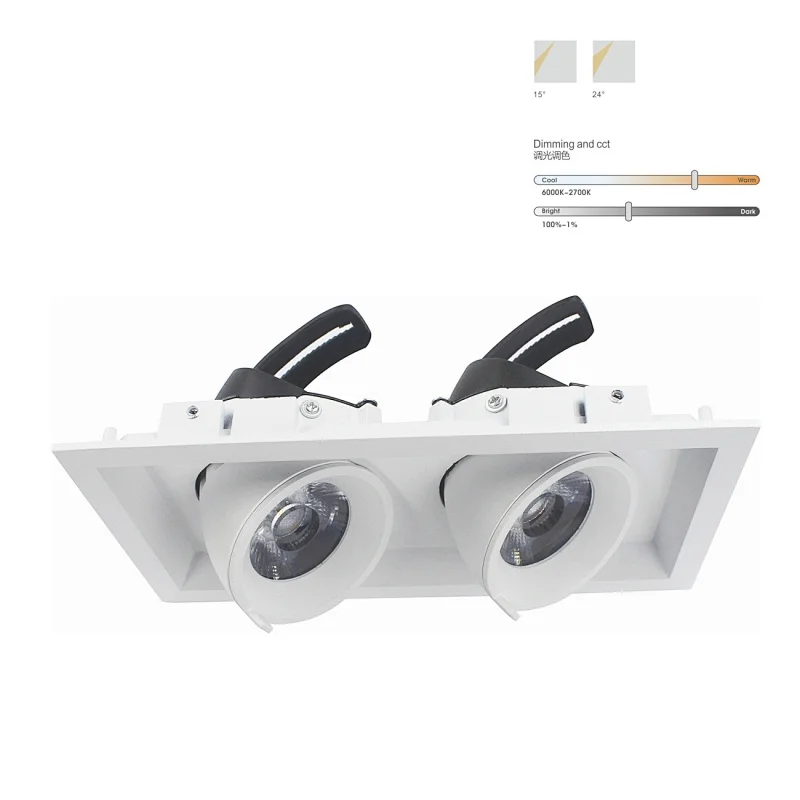

recessed luminaire NF-SD-365B-12

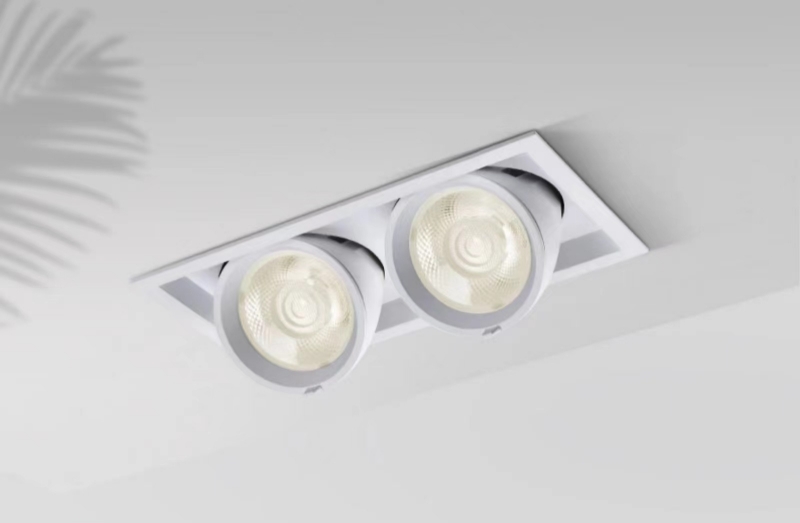

The recessed luminaire lighting with impressive characteristics: top-performing and, with three sizes(1 head, 2 heads, 3 heads), extremely flexible downlight.



The recessed luminaire can be swivelled in to accentuate the merchandise in the salesroom and at the same time it remains flush with the ceiling. And swivelled out, the downlight reaches every high-level decoration with pin-point accuracy. This makes the precise adjustment of the light possible as regards intensity and colour temperature.



Compact and extraordinarily versatile: the product family provided convincing lighting scenarios. Shapely in the swivelled-in and the swivelled-out state, it is suitable both as a downlight and for the lighting of merchandise walls up as far as the high-level decoration.
In that way every product gets the perfect lighting.



The recessed luminaire tilted in can be used as a downlight

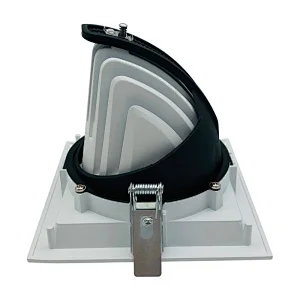

Can be tilted in through up to 70°
Our own development for ease of installation

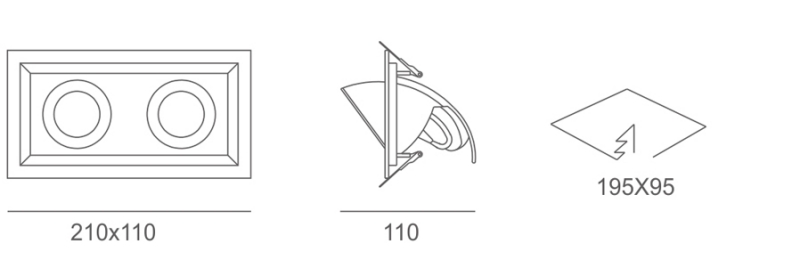

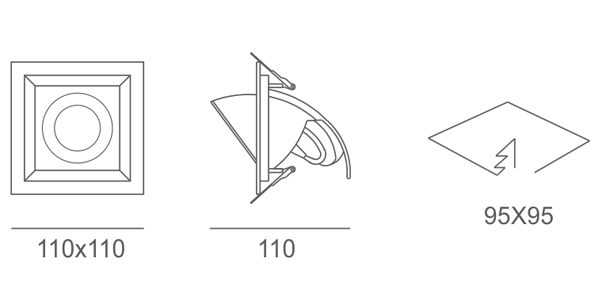

Installation cut-out size 95*95mm simplify modernisation in the case of existing ceiling cutouts
Smart lighting management optionally with control line or wireless

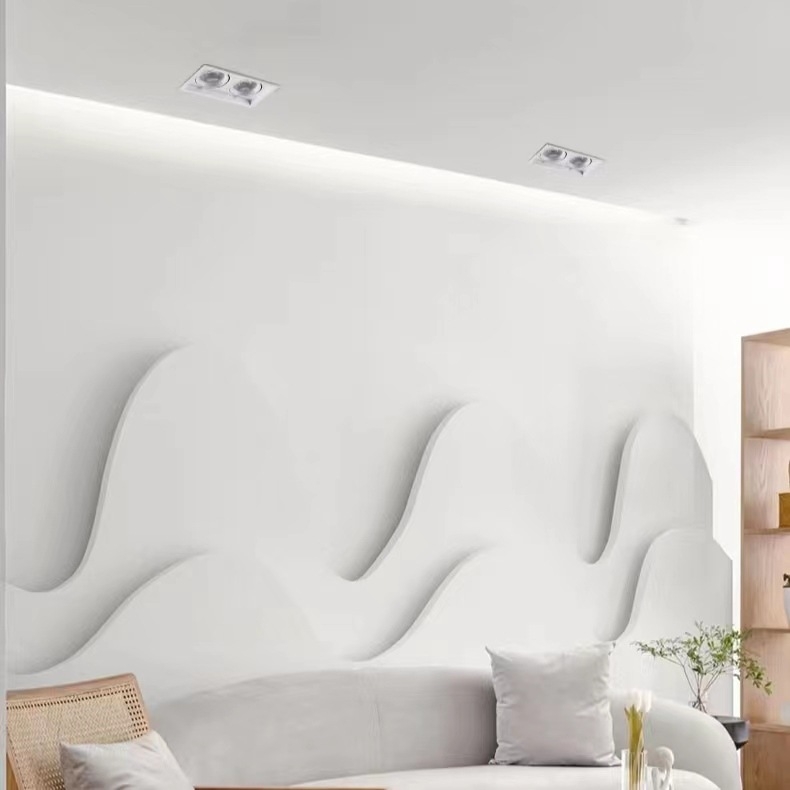

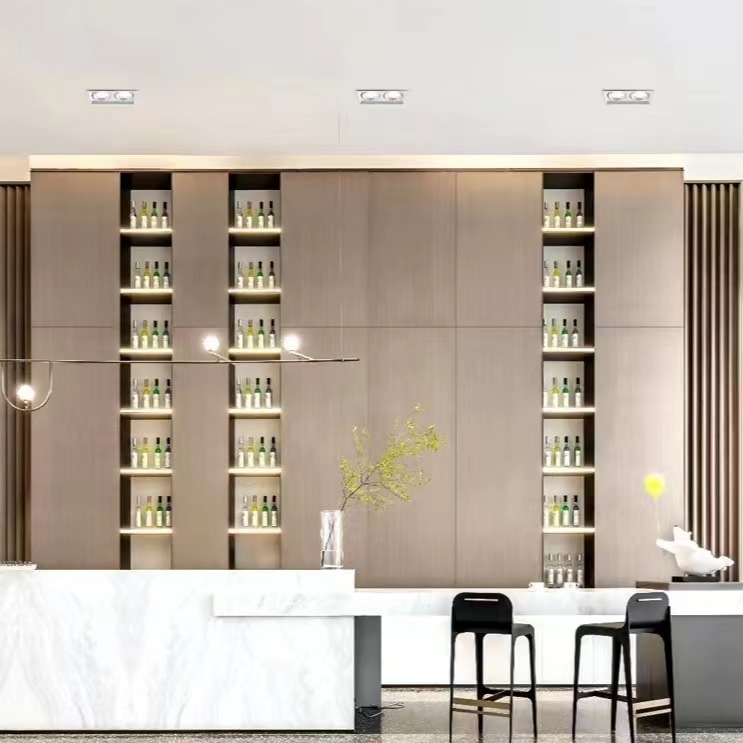

The downlight application areas    High-level decoration, Accent lighting



Wattage: 12W, 24W, 36W
LED Luminous Flux Class: 1150 lm - 3500 lm
Operating Voltage: AC220-240V, 50/60Hz
Light colour: 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool

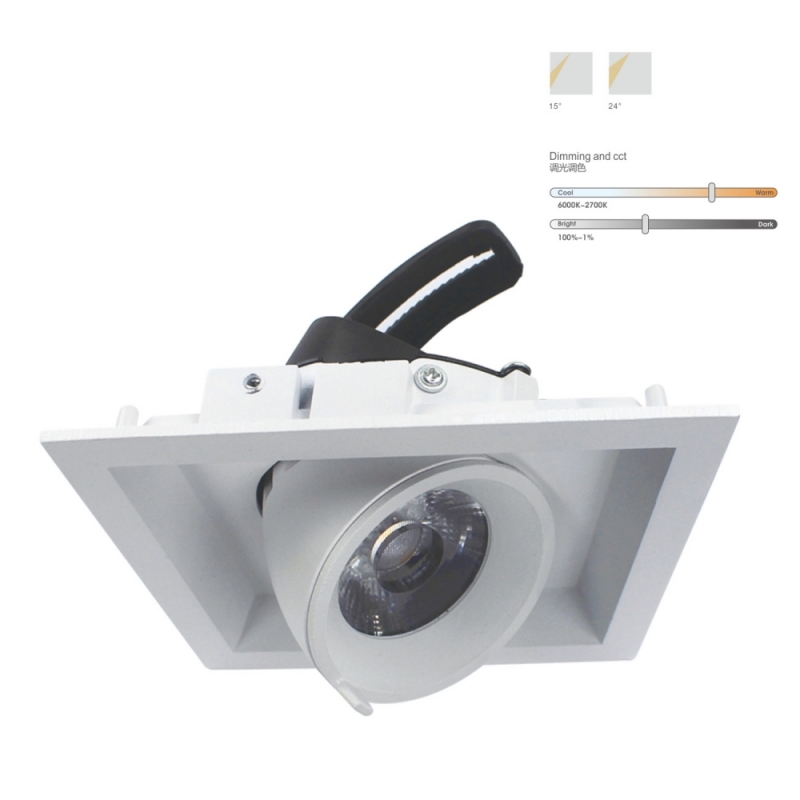

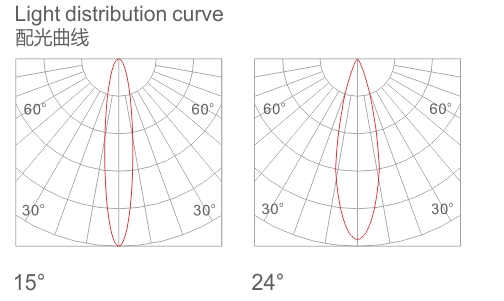

Optic: Lens with 15°, 24° beam angle
Adjustable angle: Horizontal 355° Vertical 70°
Supply unit: LED Driver
Material: Die-cast aluminium
Luminaire colour: RAL 9005 jet black, RAL 9016 traffic white
Optional dimming: DALI, 0-10V, Triac
